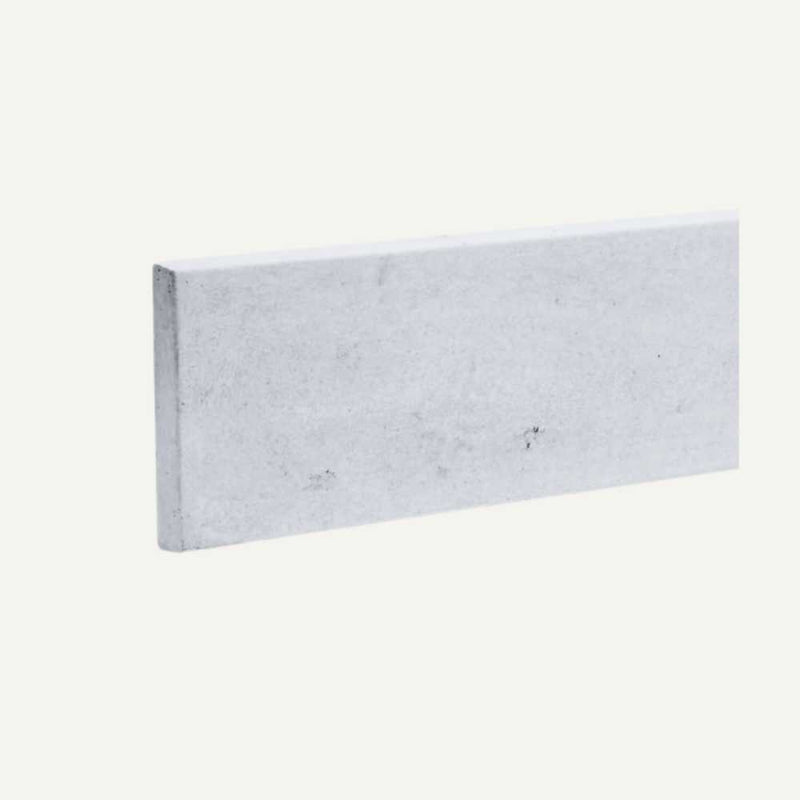

A rectangular Concrete Gravel Board with a smooth face, made by Bingley Fencing, is set against a plain white background.

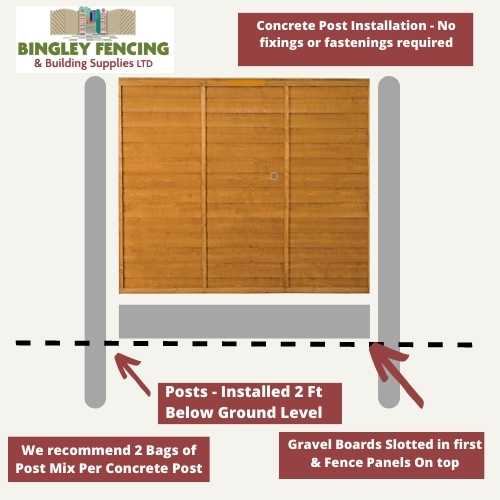

Diagram illustrating a fence installation guide featuring Bingley Fencing's Brick Faced Concrete Gravel Boards, along with tips for moisture prevention. The text advises that posts be installed 2 feet below ground with the use of 2 bags of post mix per post, while fence panels are secured on top of the Concrete Gravel Boards for enhanced durability.

Load image into Gallery viewer, A rectangular Concrete Gravel Board with a smooth face, made by Bingley Fencing, is set against a plain white background.

Load image into Gallery viewer, Diagram illustrating a fence installation guide featuring Bingley Fencing's Brick Faced Concrete Gravel Boards, along with tips for moisture prevention. The text advises that posts be installed 2 feet below ground with the use of 2 bags of post mix per post, while fence panels are secured on top of the Concrete Gravel Boards for enhanced durability.

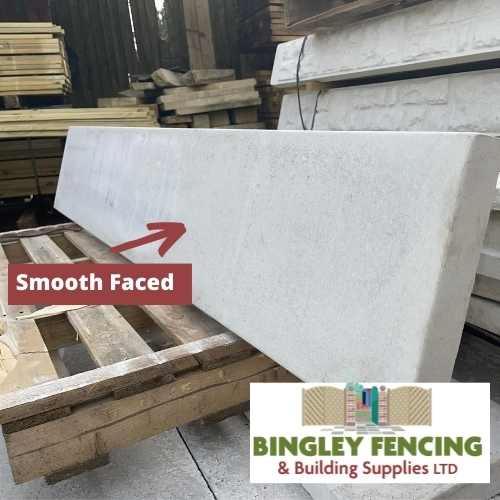

Concrete Gravel Board - Smooth Faced

Name: Concrete Gravel Board - Smooth Faced
Brand: Bingley Fencing
SKU: BF1212
Price: 11.88 GBP
Availability: InStock

150mm (6") Sold out

305mm (12") Sold out

£11.88

£11.88 ~~Inc VAT @ 20%~~

Sale Sold out

Inc Vat @ 20% -Shipping calculated at checkout.

Quantity must be 1 or more

Frequently bought with ...

Gravel Boards for Durable Fences

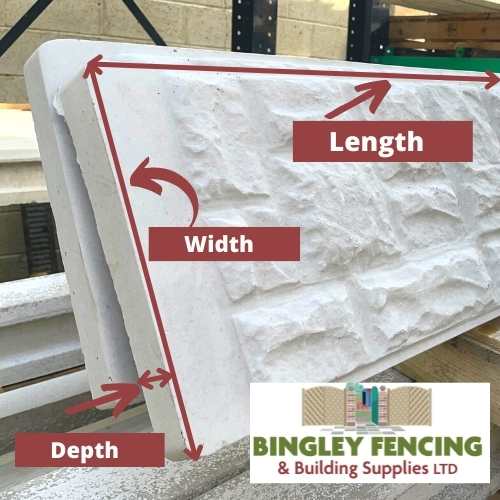

Technical Information 2 sizes stocked - variations on width

1828mm Long - x 305mm (12") wide and 50mm Deep
1828mm Long - x 150mm (6") Wide and 50mm Deep

WARNING - Heavy Item - Each of these posts can weigh in excess of 30kg - ensure you have adequate lifting facilities or resources.

These concrete gravel boards for fence are used to sit between two concrete posts to form a barrier from the wooden fence panel and the ground. This prevents moisture soaking into the fence panel and increases its lifespan.

They are all 1828mm Wide - please bear in mind all our fence panels made in house are 6ft wide which is 1828mm. European Fence panels widths are 1800mm wide so you may require an extension kit if swapping between the two design types.

We offer a smooth faced options and a brick faced option.

Deliveries within 20 Miles of BD16

We charge a flat rate for delivery of our items depending on how far you are away from Bingley Fencing.

No matter how much you buy the flat rate will be the same

This is calculated on your postcode.

The bands are as follows:

Zone 1 : £15.60 (1-3 Miles Approx)
Zone 2 : £24.00 (3-6 Miles Approx)
Zone 3 : £33.60 (7-10 Miles Approx)
Zone 4 & 5: £54.00 (10 Miles + Approx)

NOTE: Delivery outside Zone 5 will incur extra cost.

The map showing the zones can be seen

Delivery Areas page

We aim to deliver all items up to 10 Business Days (except sheds which are made to order and usually 4-6 Weeks). We aim to delivery as soon as possible.

If there is an issue with supply we will call you straight away.

You can phone at ANY point and someone WILL answer the phone.

Answers to Common Gravel Board Questions
Q1: Why use a concrete gravel board?
Concrete gravel boards protect wooden fence panels from ground moisture and pests, preventing rot and extending the lifespan of your fence. They also add stability to fencing by providing a solid foundation.

Q2: How to install concrete gravel boards?
To install, position the gravel board between concrete fence posts at the base of the fence. Use brackets or clips to secure it in place. If necessary, level the ground beforehand to ensure a straight fit.

Q3: Do I need to paint concrete gravel boards?
Concrete gravel boards are typically maintenance-free and don’t require painting. However, they can be painted with concrete-specific paint if desired for aesthetic purposes.

Q4: What is the difference between rock-faced gravel board and plain-faced?
Rock-faced gravel boards have a decorative stone-like texture, adding visual appeal to your fence. Plain-faced boards, by contrast, have a smooth, simple finish, providing a classic, minimalistic look. Both styles offer the same protective benefits.

Shrinkage/wood movement

Wood is a natural product and over time with extreme weather of rain and sun
the wood will contract and expand. This is not failure of the wood. Small
splits, cracks and knots can be wood filled where needed.

Wood may also move after installation which can cause issues but is completely unavoidable and is a result of being a natural product and is not a failing.

Wood Aftercare

All wood requires treatment to protect against the elements. This must be
done within 3 months of the timber being installed and annually thereafter.
