Product Description

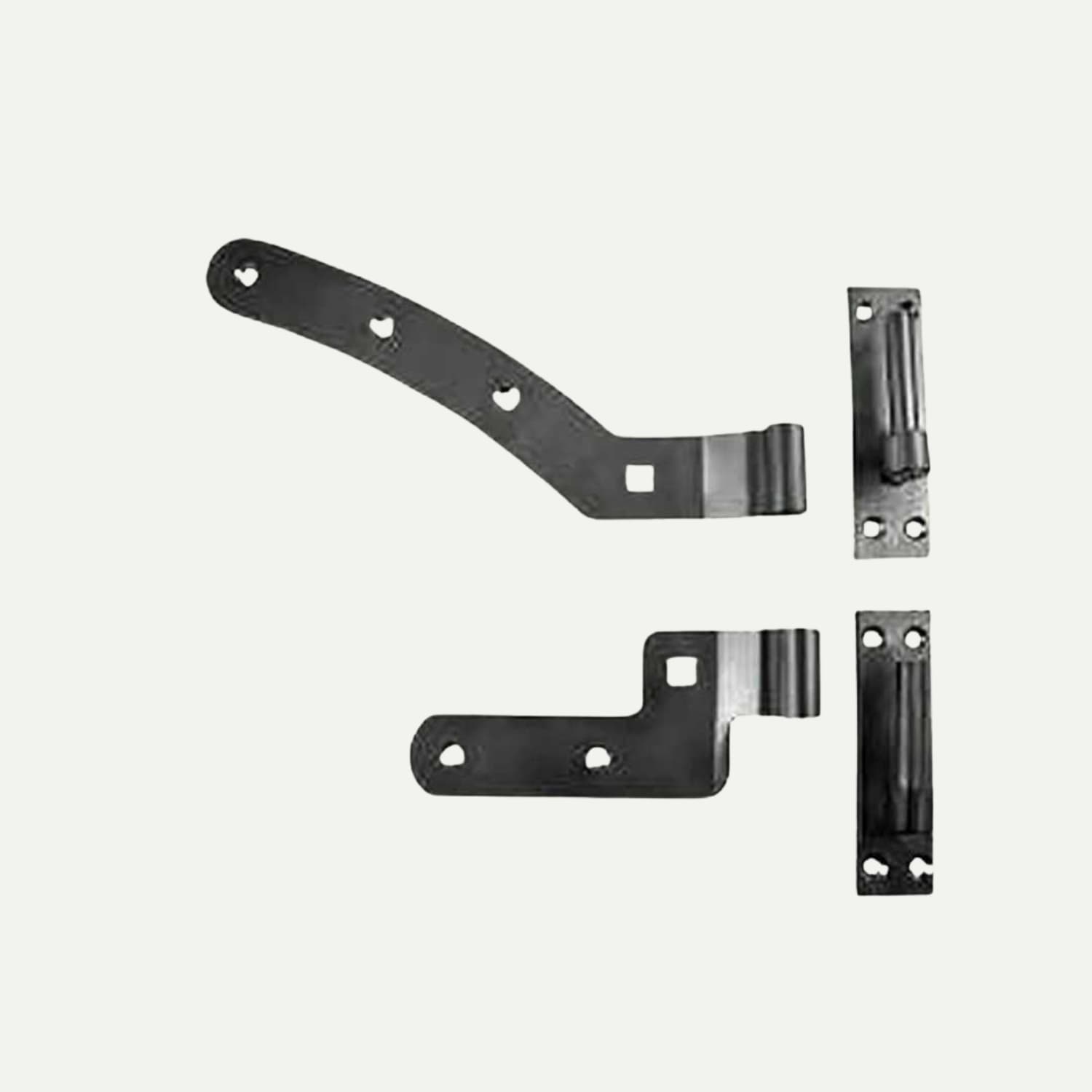

Black Curved Hook and Band Hinges for Heavy Timber Gates
This 12" Curved Heavy Duty Hook and Band Hinge Set in black is designed for hanging heavier timber gates where a curved hinge fitting is required. Available in left hand and right hand options, it is suitable for gate installations where the hinge direction matters.
The black finish gives a smart, traditional look and can be matched with black latches, bolts and other gate furniture.
We supply across Bradford, Bingley, Shipley, Keighley and surrounding West Yorkshire areas.
Specification
| Feature | Specification |
|---|---|
| Finish | Black |
| Dimensions |
12" Long |
| Included |
1 Pair as per image - optional extra fixing kit |
Key Features & Benefits
- 12" curved hook and band hinge set
- Heavy duty design for timber gates
- Black finish for a traditional look
- Left hand and right hand options available
- Suitable for garden gates, side gates and gate repairs
- Matches black gate latches, bolts and handles
Which Gate or Door Hinge Do I Need?
| Hinge Type | Best Used For | Typical Use |
|---|---|---|
| Medium T Hinge | Shed doors, garden gates and light timber doors | General-purpose hinge for everyday timber door and gate projects. |
| 12" T Hinge | Small to medium gates and shed doors | Useful where a neat, practical hinge is needed for lighter timber doors. |
| 15" T Hinge | Medium timber gates and larger shed doors | Gives extra support compared with shorter T hinges. |
| 18" T Hinge | Larger shed doors and wider garden gates | Better suited to heavier or wider timber doors than smaller T hinges. |
| Straight Hook & Band Hinge | Heavy gates and driveway gates | Heavy-duty hinge set for stronger gate hanging applications. |
| Curved Hook & Band Hinge | Heavy gates needing left or right hand fitting | Used where the gate design or hanging position requires a curved hinge. |
Supplier Fitting Instructions
1. For these heavy duty hooks and bands, fit the bands to the gate first.
2. For adjustable hook & bands only, ensure the adjustable eye bolt is inserted
in the band and adjust by hand so that the eye is in the right position to slot onto
the hook.
3. Choose position for the bands which is horizontal and ensures the end (or eye for
the adjustable band) which will slot onto the hook, has sufficient overhang. Mark
out holes for the band on the gate.
4. Drill pilot holes in the gate for the band fixings and fix the band to the gate with
the screws provided.
5. Once all bands are fixed, position gate in opening ensuring adequate clearance,
support the gate securely in this position. Insert band onto hook (for adjustable
bands, tighten the eye bolts at this point) and continue to support the gate with
hooks in place whilst drilling pilot holes in the post/frame for the hooks.
6. Fix the hooks firmly to the gate post using screws provided.
7. For additional security, the bottom hook can be fitted upside down to stop the
gate being lifted off.
