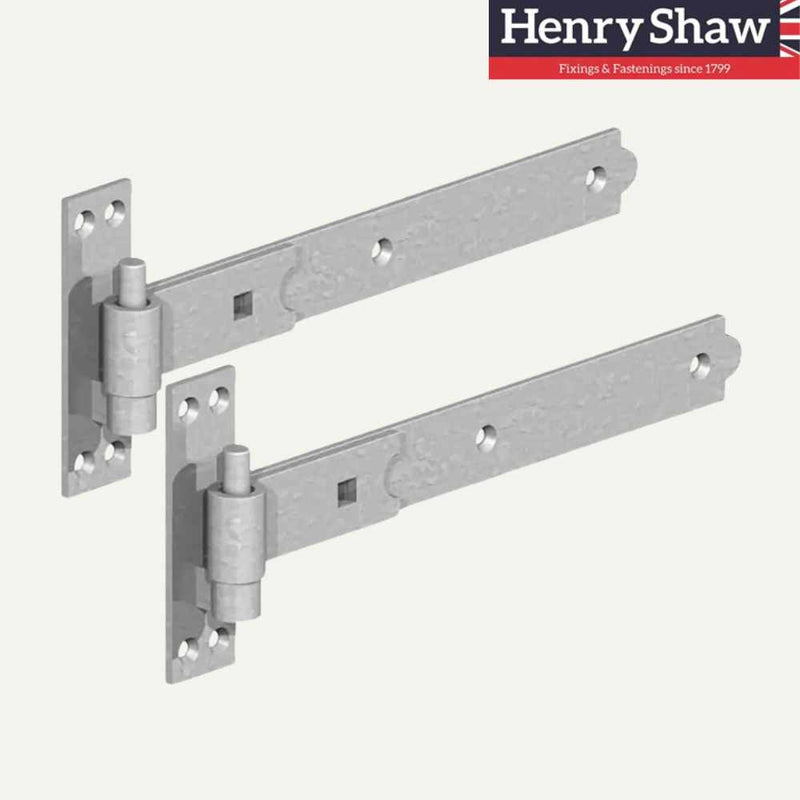

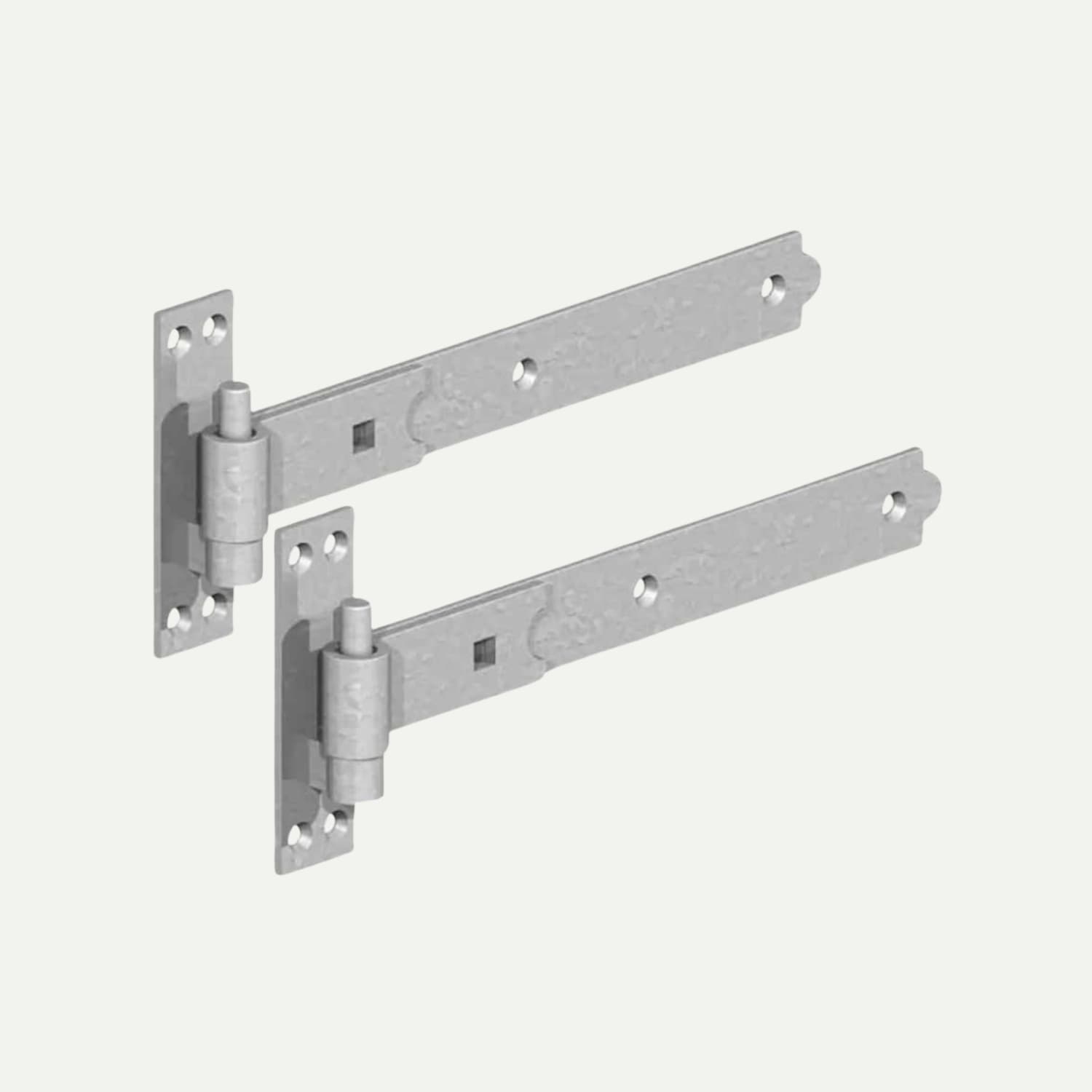

Straight Heavy Duty Hook & Band Hinge Set - Galv - Various Sizes

Heavy Duty Gate Hinge Sets

Used on heavy duty domestic gates and field and driveway gates.

They have the feature of "Lift Off"

Supplier Fitting Instructions

1. For these heavy duty hooks and bands, fit the bands to the gate first.

2. For adjustable hook & bands only, ensure the adjustable eye bolt is inserted

in the band and adjust by hand so that the eye is in the right position to slot onto

the hook.

3. Choose position for the bands which is horizontal and ensures the end (or eye for

the adjustable band) which will slot onto the hook, has sufficient overhang. Mark

out holes for the band on the gate.

4. Drill pilot holes in the gate for the band fixings and fix the band to the gate with

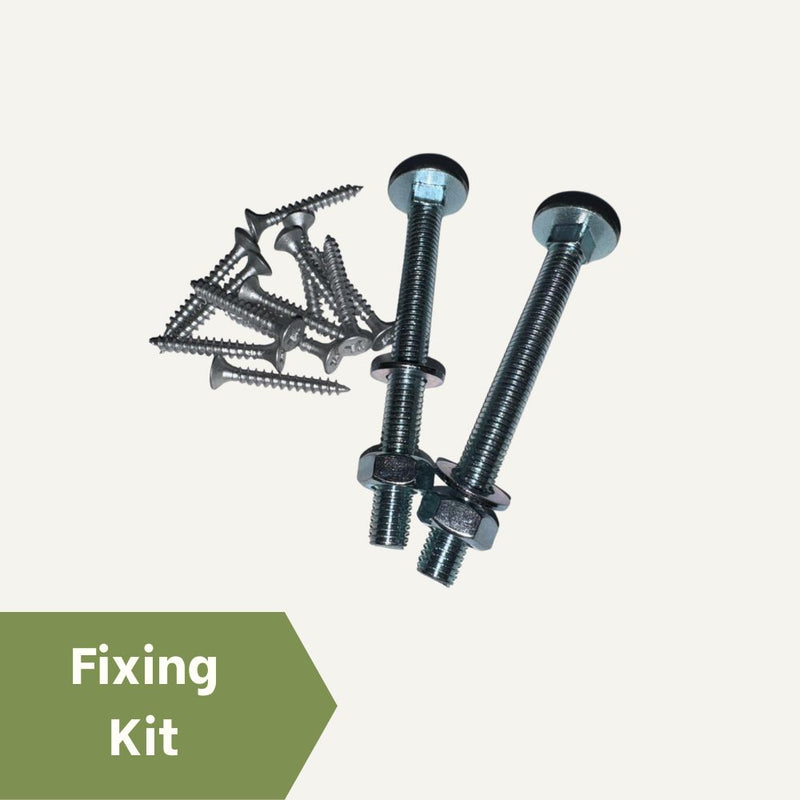

the screws provided.

5. Once all bands are fixed, position gate in opening ensuring adequate clearance,

support the gate securely in this position. Insert band onto hook (for adjustable

bands, tighten the eye bolts at this point) and continue to support the gate with

hooks in place whilst drilling pilot holes in the post/frame for the hooks.

6. Fix the hooks firmly to the gate post using screws provided.

7. For additional security, the bottom hook can be fitted upside down to stop the

gate being lifted off.
